Name: Soracom Global IoT ecoSIM Card (Plan01s)
SKU: 9374
Price: 5.00 USD
Availability: InStock

Soracom Global IoT ecoSIM Card (Plan01s)

Product code: SGPSL01-01-1

Rated 4.9 from 14 reviews

$5^.00

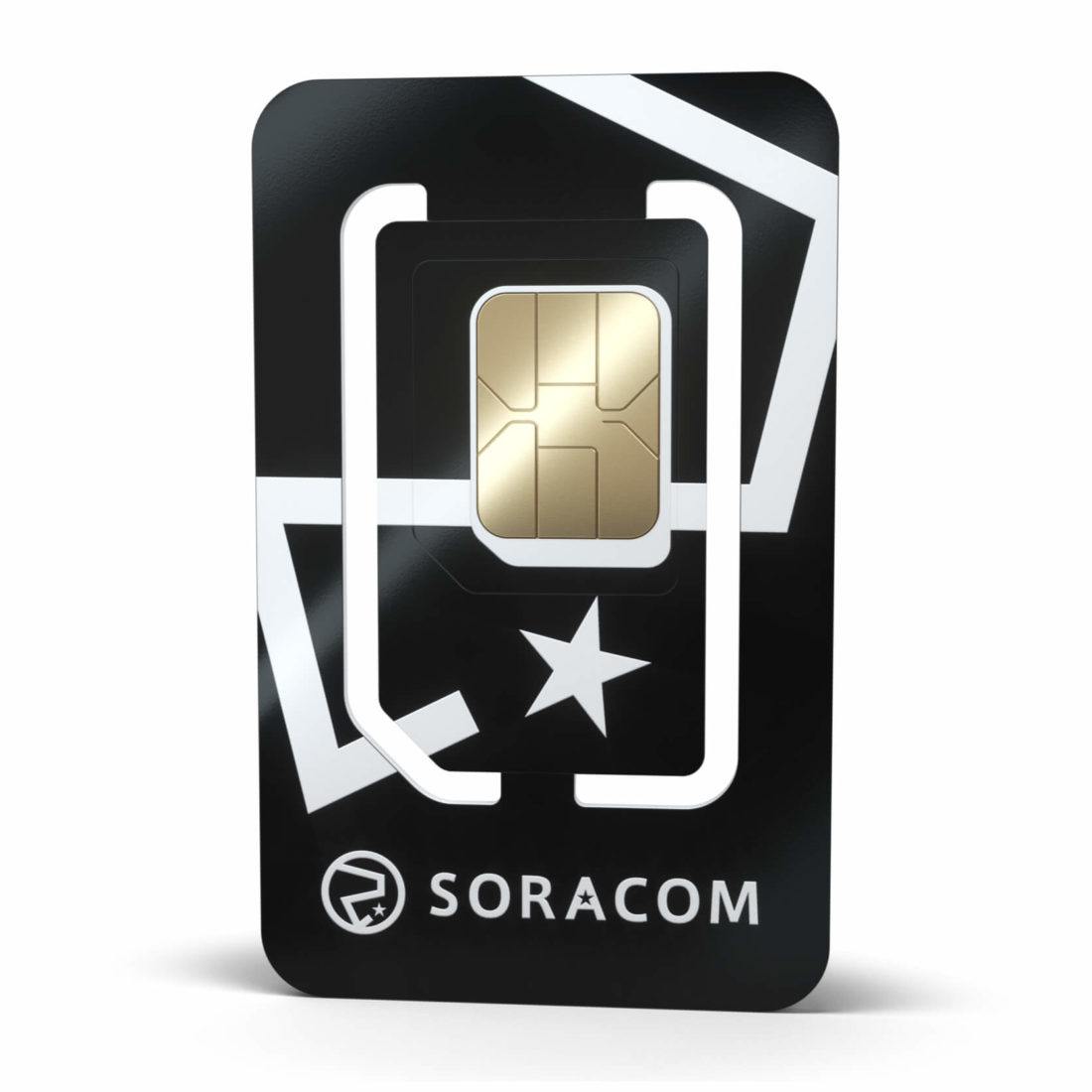

Our quarter-sized ecoSIM card uses 75% less plastic than a regular SIM, and breaks down into 2FF, 3FF, and 4FF form factors.

For Current Soracom customers or to order plan NA1 (North America): sign in to order from your user console

Introducing a super-charged SIM card, that offers way more than just IoT connectivity.

Easily connect your device to the cloud with a Soracom IoT SIM Card, then access a whole world of possibilities – including Protocol Management, Cloud Integrations, Private IoT Networking, and more.

Soracom SIM Card Features

ecoSIM that uses 75% less plastic than a regular SIM card
Cellular data plans for 2G, 3G, 4G LTE and Cat-M1 with coverage in 150 countries
Pay-as-you-go pricing – only ever pay only for the data you use
A totally secure IoT connection that bypasses the public internet
Direct integration with AWS, Azure, and Google Cloud
Easy network control and management with the Soracom Console and API

SIM Mechanical Specification

Soracom Iot SIM Card Mechanical Specification

View full mechanical specs

Soracom IoT SIM Card Capabilities

SIM Local Info
The Soracom SIM card applet can pull device location, remaining charge, and more.

Metadata Service
View, update, or even change device connection information over HTTP. No SDK or credentials required.

IMEI Lock
Restrict SIMs to specific devices to prevent tampering.

SMS Communication
Send SMS messages to devices, between devices, or from devices to your servers. Limitations apply, see our documentation for more info.

CHAP Authentication
Protect connections with a username and password.Data Usage Monitoring
Data usage for every IoT and M2M SIM card is charted in the user console and always available via API.

Any questions?

If you’d like to learn more about the Soracom IoT SIM card, our team of IoT experts would love to hear from you! You can contact us here.

Technical Specification

Product Name	Product code	Form Factor	Application
Soracom IoT ecoSIM Card	SG001	3-in-1 (2FF/3FF/4FF)	USIM/SIM

Software Features

Java Card™ 3.0.1

3GPP Release 11

OTA over SMS (SCP80)

OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)

Java Card™ Cryptographic APIs

CRC16, CRC32

DES, 3DES

AES 128 bits, 256 bits

Soracom Subscription Container applet

Soracom Local Information applet

Hardware Features
Supply voltage	1.62V to 3.3V (Class B/C)
NVM (non volatile memory) available	128 Kbytes
Operating Temperature	-25°C to +85°C
M2M qualification (ETSI 102.671)	NA
Data retention	Up to 10 years at 85°C
Compliance	RoHS compliant
